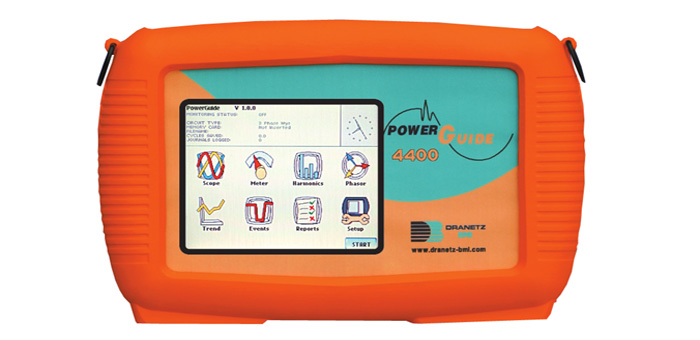

Equipped with 8 independent channels, the 3-phase PowerGuide 4400 is an advanced power monitoring instrument to incorporate a color touch screen into its lightweight design. Automated setups provide instant detection of circuits and configurations, ensuring that the instrument is ready to successfully collect data. Users can select the length and mode of data collection, including troubleshooting, data logging, power quality surveys, energy and load balancing.
Eight channels, 4 voltage & 4 current
Intuitive color touch screen
Light weight — About 4 pounds, 2 kg — with rugged rubber boot
AC/DC applications
Automated setups for “out of the box” instrument readiness
Unique “report card” annunciator that instantly characterizes events
Samples at 256 samples/cycle
Independent voltage & current triggering, cross triggering
Capture of low-medium frequency transients
Remote communications—RS-232, Ethernet or USB
Battery or AC mode
Built in UPS battery with external charger
Available with up to 4GB Compact Flash Memory
DRAN-VIEW enabled (Windows 2000, XP, Vista, 7, 8 & 10)
Measures wide range of parameters, including crest factor, K factor, transformer derating factor and telephone interference factor
Measures flicker according to IEC 61000-4-15; measures harmonics according to IEC 61000-4-7
