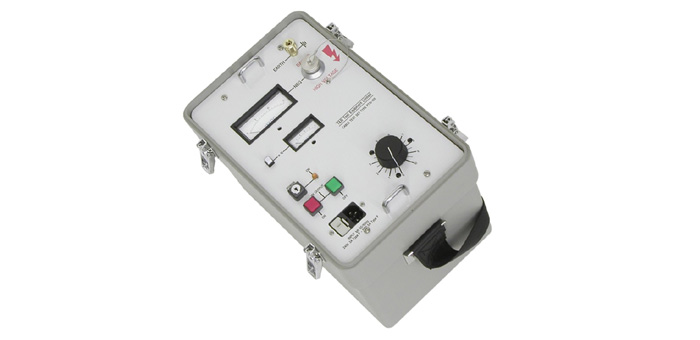

PT15-10S - High Voltage DC Cable Test System
The range includes primary and secondary current injection equipment up 6000A, voltage sources, micro-ohmmeters and high voltage test systems up to 100kV.
The PT15-10S high voltage dc test set is designed to perform tests on installed cable and jointing systems. The unit has a zero to –15kVdc variable output with a maximum charging capability of 10mA. A zero-volt interlock is fitted that prevents the output being switched on unless the output control is at zero.
The unit includes an automatic load discharge system that discharges the cable under test when the output is switched off or a breakdown occurs. The internal dumping system can discharge a maximum of 1.25kJ, corresponding to 7.5mF at 15kV. A DP20 discharge probe is also supplied as standard with the PT15-10S, allowing cables with a capacitance of up to 12mF to be discharged at 15kV.
