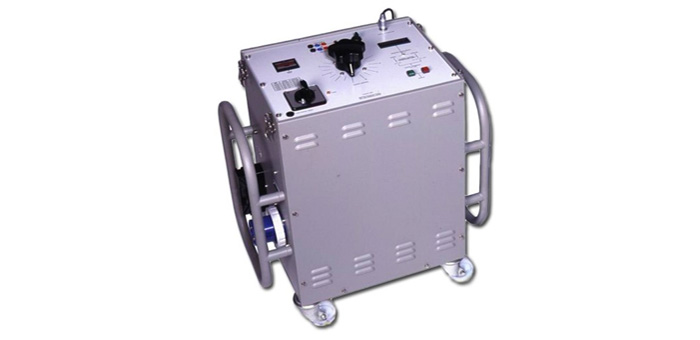

PCU2 - Primary Current Injection System
The PCU2 mk5 primary current injection system is ideally suited to commissioning and maintenance testing where very high currents are required. The system consists of separate control and loading units for maximum flexibility. The control unit contains all control and metering circuitry, and is linked to the loading unit by control and metering cables.
The control unit may be used with one of a range of loading units providing either 5000A or 6000A for 5 minutes or up to 10 or 12kA respectively for short periods. Each loading unit has two outputs which may be connected in series or parallel for maximum flexibility. For example, the LU6000 may be configured to either give 3000A at 6.6V or 6000A at 3.3V.
