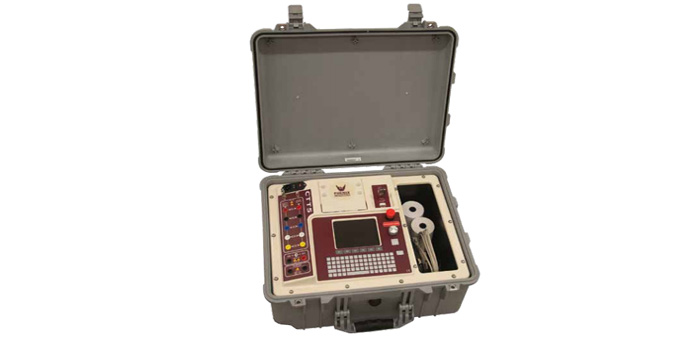

The Model CTT-5 will test the Current Transformer Ratio, Phase Shift, Polarity, Excitation, Saturation, Winding Resistance and Insulation Resistance using the voltage method in compliance with ANSI/IEEE C57.13.1 & IEC 60044- 1 standards, where voltage is applied to the secondary X terminals of the current transformer.

The CTT-5 burden test injects a current into the secondary loop to verify the integrity of the current circuit and to determine its impedance and VA. This information is required to insure the CT will perform under all circumstances. The CTT-5 can also test the Ratio, Polarity, Phase Shift, Winding Resistance and Insulation Resistance of voltage transformers.
