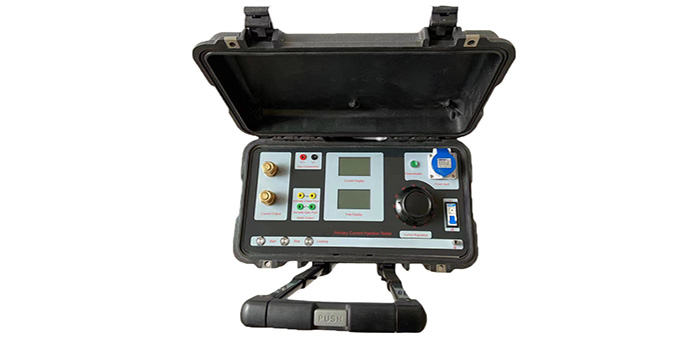

HVHC1000 - 1000A Primary Current Injection Test Set

The HVHC1000 is a high current generator and has a few features such as the use of low power consumption, large capacity of autoregulator and high permeability of the core converter, with large output power, small size, Light weight and other advantages.

Mainly used for thermal relay, motor protector, contactor, breaker, air switch, switch cabinet, circuit breaker, protective screen calibration; Used for primary bus protection and various current transformer ratio test projects, is widely used in electric power, railway, petrochemical, metallurgy and mining enterprises scientific research, production and electrical test site.

Features:

Output 0 - 1000A AC current

Can synchronize the operation time of the test equipment

Automatic identification of normally open and normally closed contacts

Several checks can be connected in series at the same time to improve work efficiency

Direct display of primary current, secondary current test value, easy to observe and record the test.

Large LCD 6.5” display

Instrument display locking function, especially for the transformer change than the test can be more accurate and faster degree

The use of PVC front panel, make the High measuring accuracy 0.5

Large power, small size, strong load capacity

Small in size, light weight, the volume is only 30% to 70% of similar products, it is very convenient to carry
