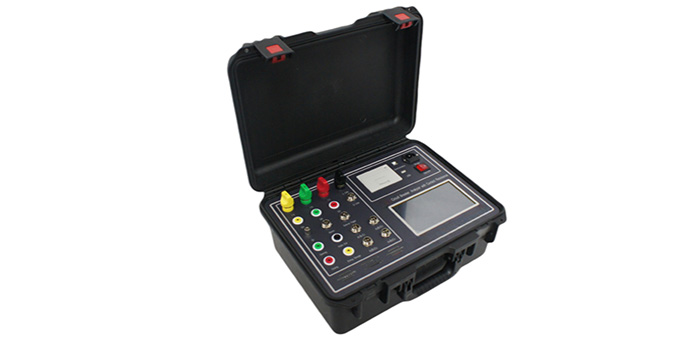

The HVCBA12100A Circuit Breaker Analyzer is a Portable Circuit Breaker Analyser is an intelligent, multifunction, data accurate, strong anti-interference, simple operation, small size, light weight. It applies to a variety of indoor, outdoor dynamic characteristics test for oil switches, vacuum switches, and SF6 switches.
12 Main Contact Channels
Reclose: close-open, open-close, open-closeopen for each breaker; process time: 1 opening time, 1 closing time, 2 closing time, metal short circuit time, no-current time.
Damping: Bounce time, bounce process, bounce waveform; the rebound amplitude of each break.
Velocity: Just score, rigid speed, maximum speed, time-stroke characteristic curve.
Travel: Total trip, open distance, over trip, over stroke, rebound amplitude.
Coil current: opening and closing current value and current waveform diagram of the coils.
Operation voltage: DC 270V / 20A digital adjustable circuit breaker action power supply is provided in the machine to automatically complete the low voltage action test of the circuit breaker and measure the action voltage value of the circuit breaker.
Test data is saved on the unit
LCD display
Built-in printer, for quick print results
Data analysis and management software, with PC online operation
