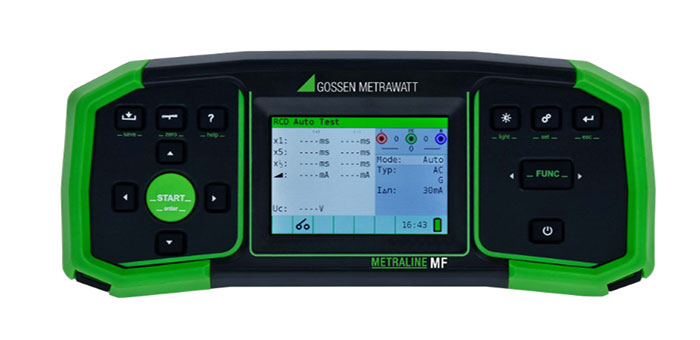

METRALINE MF - Multifunctional Installation Tester

The METRALINE MF is equipped with a color display and intuitive user prompting for easy operation. The modern scope of functions includes all tests required for electrical installations, e-mobility and earthing measurements. Convenient operation is supported by help diagrams and acoustic signals. The compact format makes the device ideal for mobile use. User-friendly data management makes it possible to store up to 1000 measured values and document test results. The device is certified in accordance with IP 40 and CAT III 600 V / CAT IV 300 V.

Technical:

Loop and line impedance measurement with RCD

Low-impedance measurement with 200 mA, automatic polarity reversal

Earthing measurement, 3-pole, 4-pole and Wenner (optional with E-Set Basic)

Insulation resistance measurement up to 1000 V, adjustable

Testing of RCD/FI for types A, AC, B, B+, F and auto-sequence

Testing of RDC-DD with 6 mA DC for e-charging points

Voltage measurement (TRMS), phase sequence and frequency

Help diagrams for each measuring function and acoustic signals during measurement

Data management, storage of 1000 measured values

METRAreport software for documentation

USB interface, IP 40, CAT III 600 V / CAT IV 300 V
