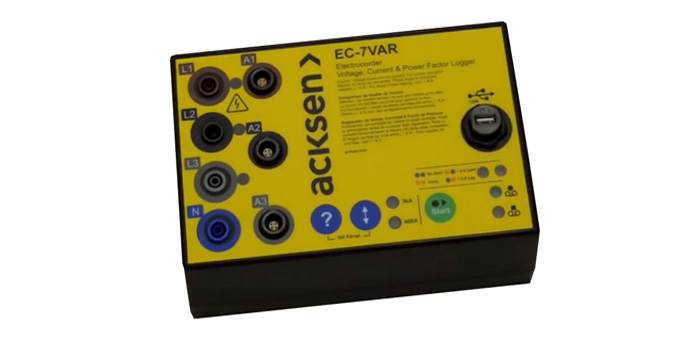

EC-7VAR - 3Phase Voltage, Current & Power Factor Data Logger

EC-7VAR - 3Phase Voltage, Current & PF Data Logger

The EC-7VAR is specifically designed to monitor one, two or three current channels, as well as one, two or three voltage channels plus Power Factor. Power Factor recorded is the phase angle between L1 and A1.

Designed to allow electrical engineers cost effectively monitor single and three phase loads. This product will allow voltage, load and reactive power problems to be highlighted quickly for further investigation.

Specifications:

Records voltage up to 600Vac and loads up to 3kAac per phase

Data stored in non-volatile memory

Memory capacity of 32,000 (True RMS) values per channel (10bit), up to 300 days continuous recording

Selectable averaging period from 2 seconds to 60 minutes

Accuracy: Voltage ±1% of reading, Current typically to ±3% of reading

Set includes data logger, Rogowski transducers, voltage leads, USB lead, Electrosoft software and soft carry case
